Coordinate Measuring Machine (LH Series)

  • Renishaw probing technology affords great flexibility, and the latest in industrial scanning technology.
  • Powerful software tools allow you to turn your results into highly visual and dynamic reports including; rich graphical plots, CAD overlays, and SPC for process control.
  • Applications for the LH Gantry CMM typically are large, heavy, tight tolerance machined parts and tooling such as; Engine Casings, Power Transmission Gears, and Stamping Dies, Injection Molds
  • Applications for the LHF include CMM inspection of; Maritime Powertrain, Aerospace Frames and Landing Gear. The simple addition of a high capacity rotary table makes the LHF ideal for large rotating parts as well, such as Gears and Turbine Components.

For more details, please visit Wenzel


Description






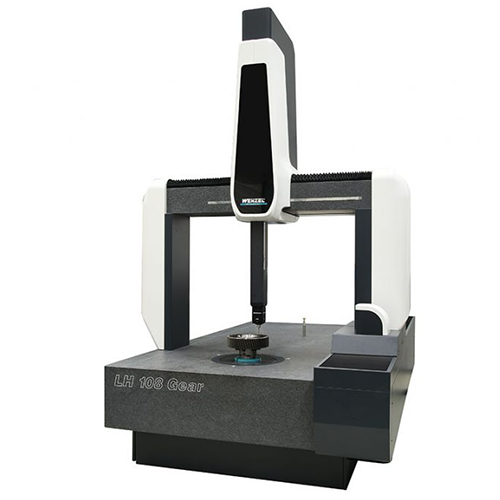

LH 54 Series –  Small Bridge-type CMM

The CNC-bridge design measuring machine LH 54 is the perfect solution for all common measurement tasks. It is used for quality control, process control, production control, the development of prototypes and reverse engineering. From simple measuring probes to high-precision and optical probe systems. The LH is suitable for demanding measuring tasks, fast form checks, extreme accuracy and scanning of any 2D and 3D curves and outlines.




LH (65/87/108) Series – Medium Bridge-type CMM



Precise, dynamic and reliable. The LH is a universal and flexible instrument for different applications. The revolutionary design of the new LH offers high mechanical accuracy, perfect ergonomics and dynamics. The new generation of LH is equipped with an incremental measuring system, which has a fine grating period, and excellent dirt immunity. As a result best position resolution and stability at high speed for all linear axes are possible.




LH (1210/1512) Series – Large Bridge-type CMM

The complete product range of WENZEL stands for precision and performance in 3D measurement. With the new generation of air-bearing coordinate measuring machines WENZEL continues the improvement in precision, efficiency and longevity. The revolutionary design of the new LH Series offers high mechanical accuracy, perfect ergonomics and dynamics.




LH Gantry (2015/2318) Series

The LH Gantry is a CNC controlled coordinate measuring machine with air bearings in all axes. The ‘high drives’ of the LH Gantry also ensure maximum stability even during dynamic movements. Due to their active pneumatic vibration damping and automatic temperature compensation, the LH Gantry is protected against vibration and thermal effects. With the optional addition of a rotary table, even large gears or other components are measured flexibly and accurately.

Applications for the LH Gantry CMM typically are large, heavy, tight tolerance machined parts and tooling such as; Engine Casings, Power Transmission Gears, and Stamping Dies, Injection Molds




LHF (2517/3020/4025) Series

The LHF is a CNC coordinate measuring machine in a moving bridge design for the high accuracy inspection of very large and heavy parts. The ground-level construction of the LHF allows easy placement of large parts with maximum mobility for the user. The measuring range in the Y-axis is available up to 12 meters in the standard version. The dual drive in the Y-axis of the LHF makes it unbeatable in terms of dynamics. Thermal influences of the environment or the work piece can be corrected by automatic temperature compensation.

Applications for the LHF include CMM inspection of; Maritime Powertrain, Aerospace Frames and Landing Gear. The simple addition of a high capacity rotary table makes the LHF ideal for large rotating parts as well, such as Gears and Turbine Components.
